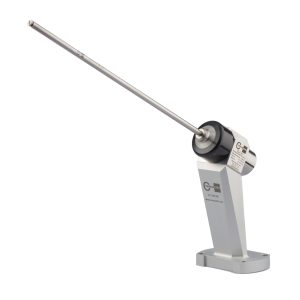

Automatic spray guns - Low Pressure Round Spray Large

The Round Spray Large is a 300 mm extension nozzle designed for industrial automatic spray applications. It provides extended reach and a 360-degree spray pattern, making it suitable for coating internal surfaces and other difficult-to-reach areas.

The Round Spray Large is particularly suitable for internal coating, cavities, tubes, recessed surfaces and other areas where conventional spray equipment has limited access.

The Round Spray Large has a length of 300 mm, providing extended reach for coating deep internal and recessed surfaces.

The extension has an outside diameter of 15 mm, providing a robust solution for demanding industrial coating applications.

The Round Spray Large provides a 360-degree spray angle, allowing coating material to be distributed around the complete internal circumference of a component.

The Round Spray Large is equipped with a 2.5 mm nozzle, making it suitable for applications requiring higher material flow and efficient coverage.

Both the nozzle and needle are manufactured from hardened material, providing increased durability and wear resistance in demanding industrial applications.

Yes. Internal coating is one of the key applications for this type of extension nozzle. The combination of its 300 mm length and 360-degree spray pattern makes it particularly suitable for coating internal surfaces.

Yes. Crescocito provides gun adapters and mounting plates for robots and fixed installations, allowing the equipment to be integrated into automated industrial painting systems.

Yes. The Round Spray Large can be incorporated into robotic painting applications where extended reach and a 360-degree spray pattern are required for internal coating.

Both versions have a 300 mm extension and 360-degree spray angle, but they are designed for different requirements. Round Spray Large has a 15 mm outside diameter and 2.5 mm nozzle, while Round Spray Small has a slimmer design for accessing narrower and more confined areas.

he main advantages are its 300 mm extended reach, 360-degree spray pattern, 2.5 mm nozzle and durable hardened nozzle and needle. These features make it an effective solution for automated coating of internal and hard-to-reach surfaces.
