• High pressure mechanical pressure regulator.
• Part no: 650 400 200
• Part no: 650 400 201 With Gauge
Paint pressure regulators

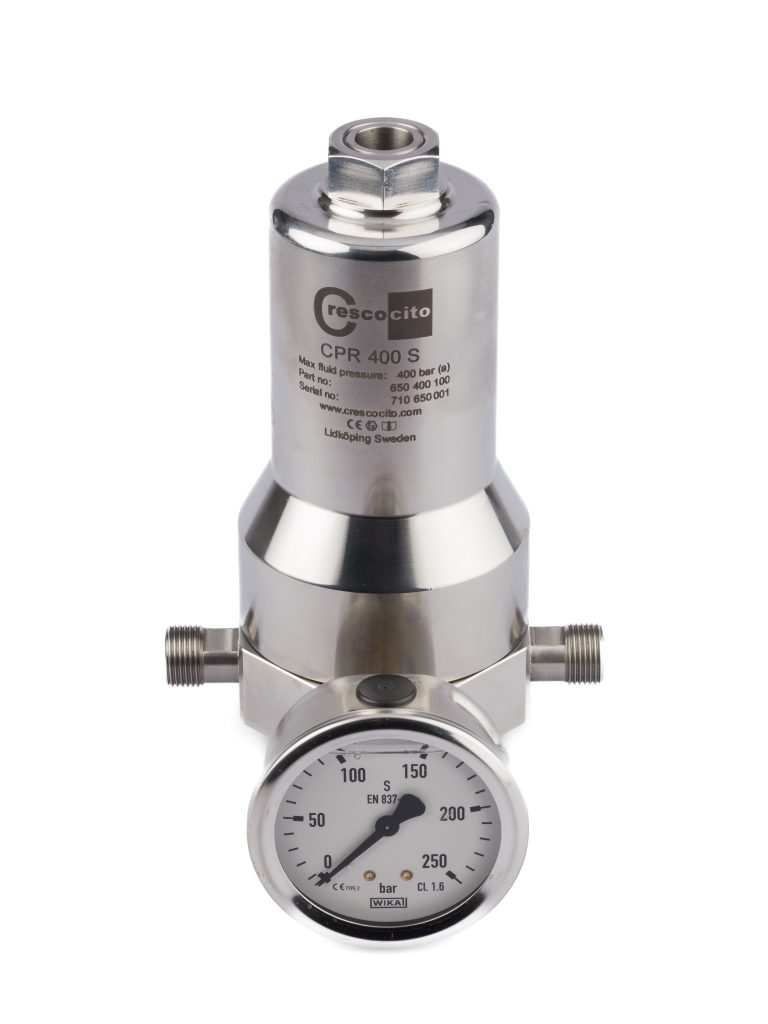

Paint pressure regulators CBPR 400 S With Gauge
The Crescocito CBPR 400 S With Gauge is a high-precision back pressure regulator designed for demanding high-pressure industrial paint and coating systems. With a maximum fluid pressure of 400 bar and a flow capacity of up to 10 litres per minute, it provides reliable back pressure control in high-pressure paint supply and circulation applications.
Featuring an integrated pressure gauge, ball-and-spring valve and single-chamber design, the CBPR 400 S combines accurate pressure control with easy monitoring and cleaning. Its robust high-pressure construction makes it suitable for industrial coating systems where stable upstream pressure and consistent material circulation are essential.
| Valve type | Ball + spring |
|---|---|
| Gauge | Yes |
| Single / dual chamber | Single |
| Inlet connection BSP | 3/8" Male |
| Max fluid pressure | 400 bar |
| Flow capacity | 10 lit/min |
| Part number | 650400201 |
-
What is the CBPR 400 S With Gauge?
The CBPR 400 S With Gauge is a high-pressure back pressure regulator designed for precise fluid pressure control in industrial paint and coating systems.
-
What is the CBPR 400 S used for?
It is used to maintain controlled upstream fluid pressure, making it particularly useful in high-pressure paint circulation and return systems.
-
Is the CBPR 400 S designed for high-pressure applications?
Yes. Crescocito describes it as a high-pressure mechanical pressure regulator, with a maximum fluid pressure of 400 bar.
-
What is the maximum fluid pressure?
The CBPR 400 S has a maximum fluid pressure of 400 bar.
-
Does the CBPR 400 S have an integrated pressure gauge?
Yes. This version is equipped with an integrated pressure gauge, providing local visual monitoring of fluid pressure.
-
What is the advantage of the integrated pressure gauge?
The gauge makes it easier to monitor and verify system pressure directly at the regulator, supporting accurate adjustment and process control.
-
Can the CBPR 400 S be used in automated painting systems?
Yes. Its 400 bar pressure capability and high flow capacity make it suitable for integration into automated high-pressure paint supply and circulation systems, subject to the requirements of the complete installation.
-
What are the main advantages of the CBPR 400 S With Gauge?
The main advantages are its 400 bar pressure capability, 10 l/min flow capacity, integrated pressure gauge, precise back pressure control, easy cleaning and compact single-chamber construction.
