- Automatic spray gun for fixed and robot/reciprocator installations.
- Gun body, cylinder housing and cylinder cap made in high grade stainless steel for extended life time.
- Internal designs for retention free interface to gun adapters and fluid nozzle.
- Very low usage of cleaning agents/solvents needed per cleaning.
- Indexed air cap positions for high repeatability and accuracy.
- All paint nozzles are certified as standard on CLA 80.
- Suitable for all types of paint materials, from water based to solvent based, UVmaterials and abrasive coating
Spray guns

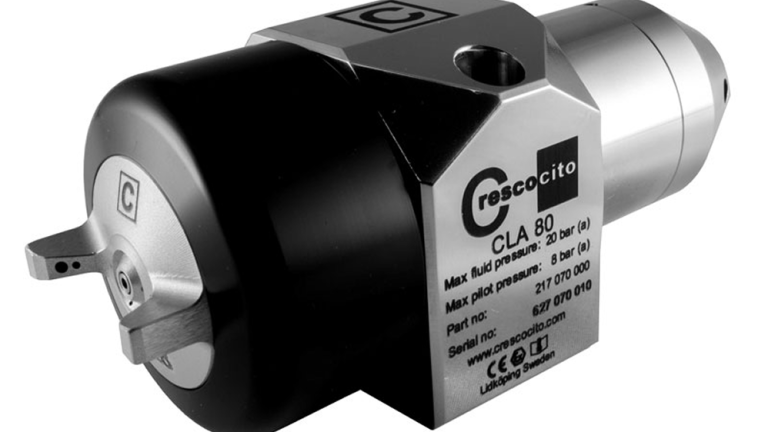

Automatic spray guns - Low Pressure CLA 80
CLA 80, optimized spray gun for automotive applications. Many options for installations on robots and machines. Functions and performance are developed in co-operation with automotive producers. Quality and consistency in combination with low running costs have been prioritized.
| Gun body | Stainless steel |
|---|---|
| Paint needle | Stainless steel, Tungsten Carbide |
| Paint nozzle | Hardened steel, Stainless steel, Tungsten Carbide |
| Air cap | Hardened and treated aluminum, Stainless steel |
| O-rings / sealings | Perflour rubber, UHMW, Viton |
| Nozzle size | 0,3-2,7 mm |
| Max fluid pressure | 10 bar |
| Weight | 980g |
| Part number | 217070000 |
| Approvals | Atex, CE |
Accessories
-
What is the Crescocito CLA 80?
The CLA 80 is a high-performance low-pressure automatic spray gun designed for demanding industrial painting applications. It provides high-quality atomization, consistent spray performance and reliable operation in automated production environments.
-
What applications is the CLA 80 designed for?
The CLA 80 is designed for robot painting, reciprocator installations and fixed automatic painting systems. It is suitable for applications where consistent coating quality, high production capacity and reliable operation are required.
-
Which industries use the CLA 80?
The CLA 80 is suitable for a wide range of industrial applications, including automotive, plastics, wood, metal and general industrial manufacturing.
-
Can the CLA 80 spray water-based and solvent-based coatings?
Yes. The CLA 80 is designed to handle a wide range of coating materials, including water-based, solvent-based and UV-curing coatings.
-
Is the CLA 80 compatible with robotic painting systems?
Yes. The CLA 80 is specifically designed for robotic painting, reciprocators and other automated coating systems, delivering consistent spray performance in demanding production environments.
-
What nozzle sizes are available for the CLA 80?
The CLA 80 is available with nozzle sizes ranging from 0.8 mm to 2.7 mm, allowing the spray gun to be configured for different paint materials, flow rates and application requirements.
-
How can the CLA 80 help reduce paint consumption?
The CLA 80 is designed to provide efficient atomization and controlled paint application, helping improve transfer efficiency and reduce unnecessary overspray. Correct configuration of the nozzle, air pressure and paint flow can contribute to lower paint consumption and more consistent coating results.
-
Is the CLA 80 easy to maintain?
Yes. The CLA 80 has been designed with durability, easy cleaning and low maintenance requirements in mind. High-quality materials and a limited number of wearing parts help reduce service requirements and operating costs.
-
Can the CLA 80 be combined with other Crescocito equipment?
Yes. The CLA 80 can be integrated with other Crescocito solutions such as Paint Supply Systems, Colour Changers, Paint Pressure Regulators and Automatic Cleaning Equipment to create a complete industrial painting system.
-
Why choose the Crescocito CLA 80?
The CLA 80 combines high coating quality, reliable operation, flexible installation and low operating costs. Its robust construction and wide range of configurations make it suitable for demanding automated painting processes where repeatability and production efficiency are important.
