- High precisions and easy cleaning
Paint pressure regulators

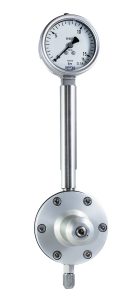

Paint pressure regulators CPR 08 S With Gauge
The Crescocito CPR 08 S With Gauge is a high-precision paint pressure regulator with an integrated pressure gauge for accurate control and easy monitoring of fluid pressure in industrial painting and coating systems.
Designed for high precision and easy cleaning, the regulator features a compact single-chamber construction and ball-and-spring valve. With a maximum fluid pressure of 8 bar and flow capacity of up to 4 litres per minute, the CPR 08 S With Gauge provides reliable pressure control for low-pressure paint supply and automated industrial coating applications.
| Valve type | Ball + spring |
|---|---|
| Gauge | Yes |
| Single / dual chamber | Single |
| Inlet connection BSP | 1/4" Female 3/8" Male |
| Outlet Connection BSP | 1/8" Female |
| Max fluid pressure | 8 bar |
| Flow capacity | 4 lit/min |
| Part number | 224005100 |
-
What is the CPR 08 S With Gauge?
The CPR 08 S With Gauge is a precision paint pressure regulator with an integrated pressure gauge for controlling and monitoring fluid pressure in industrial coating systems.
-
What is the CPR 08 S With Gauge used for?
It is used to regulate paint or coating material pressure before the fluid reaches downstream application equipment, helping provide controlled and stable material delivery.
-
Does the CPR 08 S have an integrated pressure gauge?
Yes. This version is equipped with an integrated gauge, allowing the regulated fluid pressure to be monitored directly at the regulator.
-
What is the advantage of having a pressure gauge on the regulator?
A local pressure gauge makes it easier for operators to set, monitor and verify fluid pressure directly at the point of regulation.
-
What are the main advantages of the CPR 08 S With Gauge?
The main advantages are high-precision pressure regulation, integrated pressure monitoring, easy cleaning, compact single-chamber construction, 8 bar maximum pressure and 4 l/min flow capacity.
