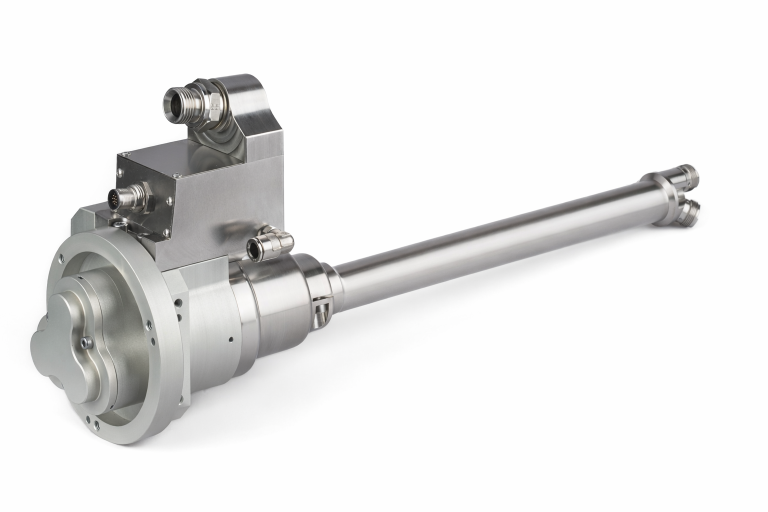

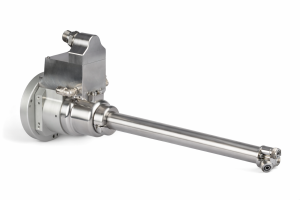

Sealing CSG 510

The CSG 510 is an automatic sealing applicator developed for robotic and automated automotive paint shop applications, including seam sealing, underbody applications and sound-deadening materials.

The CSG 510 is designed for interior seam sealing, under-body coating and sealing, and liquid applied sound deadener applications in automotive production.

Yes. Crescocito states that the CSG 510 can easily adapt to different robot designs, supporting integration into both new and existing robotic sealing installations.

The gun body is manufactured from hardened coated aluminium, providing a robust but lightweight construction for robotic applications.

The CSG 510 has a maximum fluid pressure of 250 bar, making it suitable for demanding high-pressure sealing processes.

Yes. The CSG 510 can dispense up to three different patterns and widths through a single dispensing system.

Using one applicator for several patterns and widths increases process flexibility and station productivity and can reduce the need for additional dispensing equipment.

Yes. The CSG 510 includes integrated temperature and pressure sensing for accurate monitoring and control of the sealing process

Crescocito specifies Perflour rubber, UHMW and Viton for the O-rings and sealings.

Yes. Internal circulating channels are designed to divert potential leakage. They can also circulate a lubricating agent when working with demanding materials.

Circulating a lubricating agent can help support applicator performance when working with particularly demanding sealing materials.

Yes. Crescocito specifically highlights the user-friendly design and ease of maintenance, intended to save both time and operating costs.

Its modular construction enables future adaptations for using two different materials within the same applicator, as well as applications involving cosmetic sealing.

Both applicators share many functions and applications. One clear technical difference is the gun body: CSG 510 uses hardened coated aluminium and weighs 620 g, while CSG 500 uses a different body construction. This makes the lightweight construction an important characteristic to highlight for the CSG 510.

The main advantages are its lightweight hardened coated aluminium body, 250 bar pressure capability, multiple dispensing patterns, integrated temperature and pressure sensing, internal circulation channels, modular construction and robot-friendly design.
