Automatic Cleaning Equipment

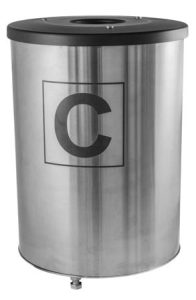

Automatic Cleaning Equipment CAP 100

Automatic cleaning device for air caps on robot mounted spray guns.

Automatic cleaning device for air caps on robot mounted spray guns.

  • Ideal soluction for cleaning withoutt production losses. Waste material from flushing and colour change can be collected via a dump line or the optional pump unit.
  • The CAP words with 4 high impact nozzles and maximize the cleaning affect with a minimum usage of cleaning agent/solvent in a short time.
  • Works with low pressure guns and air assist spray guns.
  • Can be mounted in a fix position, or on line tracked robots.
  • Suitable for all types of points and solvents.
  • Available for single or dual guns.
  • Atex approved for Ex environments.
Housing

Stainless steel

Cover

POM

Solvent nozzle

Stainless steel

O-rings

Viton

Sealings

Teflon

Diameter

44 or 49.5 mm

Max solvent pressure

7 bar

Max air pressure

7 bar

Weight

7.5 kg

Part number

240010001

Approvals

Atex, CE
