- OHC – Over Head Cup
- Small paint cup for sample spraying.
- Gun body, cylinder housing and cylinder cap made in high grade stainless steel for extended life time.
- Indexed air cap positions for high repeatability and accuracy.
- All paint nozzles are certified as standard on CLA 80.
- Suitable for all types of paint materials, from water based to solvent based and UV materials.
Spray guns

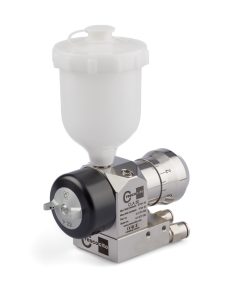

Automatic spray guns - Low Pressure CLA 80 OHC
OHC – Over Head Cup
All functions of the CLA 80 plus the possibility for sample spraying by the small paint cup, or via pressure feed. Quick paint changes due to the insert for reducing internal volumes. Paint flow adjustment by the indexed flow control knob.
| Gun body | Stainless steel |
|---|---|
| Paint needle | Stainless steel, Tungsten Carbide |
| Paint nozzle | Hardened steel, Stainless steel, Tungsten Carbide |
| Air cap | Hardened and treated aluminum, Stainless steel |
| O-rings / sealings | Perflour rubber, UHMW, Viton |
| Nozzle size | 0,8-2,7 mm |
| Max fluid pressure | 10 bar |
| Weight | 1065g |
| Part number | 217080200 |
| Approvals | Atex, CE |
Gun adapters and mounting plates for robots and fixed installations, Positioning pin for programming works.
-
What is the CLA 80 OHC?
The CLA 80 OHC (Over Head Cup) is a low-pressure automatic spray gun based on the CLA 80 platform. It combines the performance of the CLA 80 with a small overhead paint cup, making it particularly suitable for sample spraying, testing and applications requiring quick paint changes.
-
What is the main advantage of the Over Head Cup?
The small overhead paint cup makes it possible to spray small quantities of paint without using a complete paint supply system. This is particularly useful for sample spraying, colour testing, laboratory work and small production batches.
-
Can the CLA 80 OHC also be pressure fed?
Yes. In addition to using the small overhead paint cup, the CLA 80 OHC can also be operated via pressure feed, providing flexibility for different painting processes and production requirements.
-
Is the CLA 80 OHC suitable for frequent colour changes?
Yes. The CLA 80 OHC is designed for quick paint changes. An internal insert reduces the internal paint volume, helping to minimise the amount of paint and cleaning material required when changing colours.
-
How is the paint flow adjusted?
Paint flow can be adjusted using the indexed flow control knob. This provides controlled and repeatable adjustment of the paint flow, which is especially useful when carrying out tests or repeating specific application settings.
-
What paint materials can be used with the CLA 80 OHC?
The CLA 80 OHC is suitable for a wide range of coating materials, including water-based, solvent-based and UV-curing materials.
-
What nozzle sizes are available?
The CLA 80 OHC is available with nozzle sizes from 0.8 mm to 2.7 mm, allowing the spray gun to be adapted to different materials, flow rates and spray requirements.
-
What is the maximum fluid pressure?
The CLA 80 OHC is designed for a maximum fluid pressure of 10 bar.
-
Is the CLA 80 OHC suitable for applications requiring high repeatability?
Yes. The spray gun features indexed air cap positions, helping operators reproduce spray settings accurately and achieve consistent application results.
-
Does the CLA 80 OHC have ATEX and CE approval?
Yes. The CLA 80 OHC is specified with ATEX and CE approvals, making it suitable for professional industrial painting environments where applicable safety requirements must be met.
