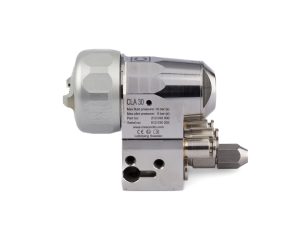

Automatic spray guns - Low Pressure CLA 30 K

The CLA 30 K is a compact automatic low-pressure spray gun designed for fixed and robotic painting installations. It combines high performance with a fixed needle stroke for remote paint flow control and is particularly suitable for applications requiring very low paint flows.

The CLA 30 K features a fixed needle stroke designed for remote paint flow control. This makes it well suited for automated painting systems where paint flow needs to be controlled externally as part of the production process.

The CLA 30 K is designed for automatic industrial painting applications requiring low paint flow, precision and high repeatability. Its compact construction makes it suitable for both fixed installations and robotic painting systems.

Yes. The CLA 30 K is specifically adapted for very low paint flows, making it suitable for precision coating and applications where only small and accurately controlled amounts of coating material are required.

The CLA 30 K is available with nozzle sizes from 0.3 mm to 1.2 mm, allowing the spray gun to be configured for different coating materials, flow rates and application requirements.

The CLA 30 K is suitable for a wide range of coating materials, including water-based, solvent-based and UV materials, providing flexibility for different industrial painting processes.

Yes. One of the key features of the CLA 30 K is its fixed needle stroke for remote paint flow control. This makes it particularly useful in automated processes where paint flow is managed externally.

Yes. The CLA 30 K is designed for robotic as well as fixed automatic installations. Gun adapters and mounting plates are available for integration into automated painting systems.v

The spray gun features indexed air cap positions with four fixed 90-degree positions, helping provide high repeatability and accuracy when reproducing spray settings.

Yes. The CLA 30 K has an external design developed for easy cleaning. Its internal design provides a retention-free interface to the gun adapter and fluid nozzle, helping reduce cleaning and colour-change times.

Yes. The retention-free internal design means that very little cleaning agent or solvent is required per cleaning, helping reduce both cleaning time and operating costs.

The gun body, cylinder housing and cylinder cap are manufactured from high-grade stainless steel. The paint needle and paint nozzle are also made from stainless steel, providing durability and long service life.

The CLA 30 K weighs approximately 500 grams, contributing to its compact design and making it suitable for automated and robotic painting installations.

Yes. The CLA 30 K is specified with CE and ATEX approvals for use in applicable professional industrial painting environments.

The main advantages are its compact design, very low paint flow capability, remote paint flow control, high repeatability and easy cleaning. These features make the CLA 30 K particularly suitable for automated precision coating applications.
