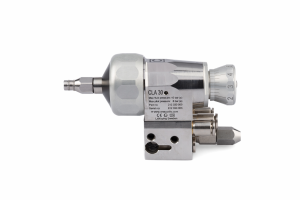

Automatic spray guns - Low Pressure CLA 30 A ( Airbrush )

The CLA 30 A (Airbrush) is a compact automatic low-pressure spray gun designed for applications requiring very low paint flow, high precision and excellent control. Its airbrush technology makes it particularly suitable for detailed industrial coating applications.

The CLA 30 A is designed for fixed and robotic painting installations where small quantities of paint need to be applied with high accuracy. It is especially suitable for precision coating, small components and detailed surfaces.

The CLA 30 A is specifically designed for very low paint flows starting from approximately 1.0 cc/min, making it suitable for applications where precise and controlled material application is essential.

The integrated airbrush technology provides highly controlled atomization and allows almost overspray-free painting at short spraying distances. This can improve coating precision while reducing unnecessary paint consumption.

Yes. The CLA 30 A features micro adjustment for precise paint flow control, allowing the amount of coating material to be accurately adapted to the application.

The CLA 30 A is equipped with a 0.4 mm nozzle, supporting the very low material flow and high level of precision required for detailed coating applications.

The CLA 30 A is suitable for a wide range of coating materials, including water-based, solvent-based and UV materials, providing flexibility for different industrial painting processes.

Yes. When used at short spraying distances, the airbrush technology provides almost overspray-free application. This can help reduce paint waste and keep surrounding areas cleaner.

Yes. The CLA 30 A is designed for both robotic and fixed automatic installations. Crescocito offers gun adapters and mounting plates for integration into automated painting systems.

Yes. The external design is developed for easy cleaning, while the internal design provides a retention-free interface to the gun adapter and fluid nozzle. This helps reduce cleaning and colour-change times.

Yes. Its internal design helps minimize paint retention, meaning that very little cleaning agent or solvent is required per cleaning compared with many conventional solutions.

The gun body, cylinder housing and cylinder cap are manufactured from high-grade stainless steel. The paint needle and paint nozzle are also made from stainless steel, contributing to durability and long service life.

Yes. The CLA 30 A is specified with CE and ATEX approvals, making it suitable for applicable professional industrial painting environments.

The main advantages are its compact design, very low paint flow, precise micro adjustment and airbrush technology. Together, these features make the CLA 30 A an effective solution for automated applications requiring high precision, low paint consumption and minimal overspray.
