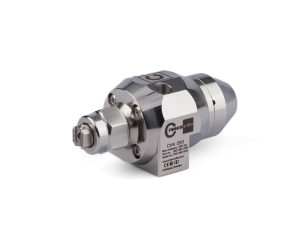

Automatic spray guns - Airless/Air Assist CHA 250

The CHA 250 is a very compact automatic airless high-pressure spray gun designed for fixed, robotic and reciprocator installations. It combines high transfer efficiency with high capacity for demanding industrial painting applications.

The CHA 250 is designed for automatic industrial painting applications where high pressure, high capacity and efficient material transfer are required. Its compact design makes it suitable for robots, reciprocators and fixed automatic installations.

The CHA 250 is designed for a maximum fluid pressure of 250 bar, making it suitable for demanding high-pressure airless coating applications.

Airless spraying provides high application capacity and efficient material transfer, making it suitable for industrial applications where large amounts of coating need to be applied efficiently and consistently.

The CHA 250 is suitable for a wide range of coating materials, including water-based paints, solvent-based paints, UV materials and high-solid coatings.

Yes. The CHA 250 is specifically suitable for high-solid paints as well as conventional water-based, solvent-based and UV coating materials.

The CHA 250 is available with nozzle sizes from 0.09″ to 0.41″, allowing the spray gun to be configured for different coating materials, flow requirements and spray applications.

Yes. The CHA 250 can be equipped with nozzles for fixed horizontal or vertical positions, as well as standard Tungsten Carbide nozzles. This provides flexibility for different automated painting applications.

Yes. The CHA 250 is designed for robotic painting installations. Crescocito offers gun adapters and mounting plates for both robots and fixed installations.

Yes. Its compact construction makes the CHA 250 suitable for robot, reciprocator and fixed automatic installations, providing flexibility when designing automated industrial painting systems.

Yes. The CHA 250 is prepared for material circulation through the gun body, making it suitable for industrial paint supply systems where continuous circulation is required.

The CHA 250 is designed with very few moving parts, helping reduce wear, maintenance requirements and operational costs. Its high transfer efficiency can also contribute to more efficient use of coating material.

Yes. The CHA 250 has an external design developed for easy cleaning, helping simplify maintenance and reduce downtime in industrial production.

The gun body and cylinder housing are manufactured from high-grade stainless steel for extended service life. The needle and seat are manufactured from Tungsten Carbide for high durability and wear resistance.

The CHA 250 weighs approximately 620 grams, providing a compact and robust solution for automated high-pressure painting installations.

Available accessories include gun adapters, mounting plates for robots and fixed installations, a heating element and a positioning pin for programming work, providing flexibility when integrating the spray gun into automated systems.

Yes. The CHA 250 is specified with CE and ATEX approvals for use in applicable professional industrial painting environments.

The main advantages are its compact design, 250 bar maximum fluid pressure, high transfer efficiency, high capacity, few moving parts and material circulation capability. These features make the CHA 250 particularly suitable for demanding automated airless painting applications.
