- Automatic spray gun for fixed and robot/reciprocator installations.
- External design for easy cleaning.
- Gun body, cylinder housing and cylinder cap made in high grade stainless steel for extended life time.
- Flow optimized for high production capacity.
- Indexed air cap positions for high repeatability and accuracy.
- All paint nozzles are certified as standard on CLA 80.
- Suitable for glaze, vitreous enamel and other abrasive materials.
Spray guns

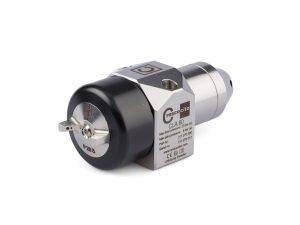

Automatic spray guns - Low Pressure CLA 80 CERAMIC
High-capacity spray gun for ceramic applications. Large passages for air and material gives very high spraying capacity of abrasive materials. One CLA 80 Ceramic can many times replace 2 other ceramic spray guns. Tungsten Carbide nozzle and needle as standard. Well suitable for glaze, vitreous enamel and other abrasive materials.
| Gun body | Stainless steel |
|---|---|
| Paint needle | Tungsten Carbide |
| Paint nozzle | Tungsten Carbide |
| Air cap | Hardened and treated aluminum, Stainless steel |
| O-rings / sealings | NBR, UHMW, Viton |
| Nozzle size | 1,3 – 2,7 mm |
| Max fluid pressure | 10 bar |
| Weight | 980g |
| Part number | 217070200 |
| Approvals | Atex, CE |

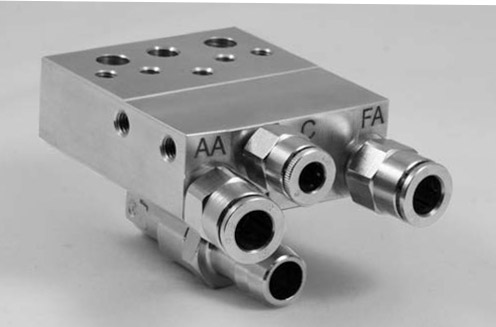

Gun adapters and mounting plates with material circulation
Accessories
