- Cartridge filter housing for low pressure applications, suitable for 10″ standard cartridges SOE and DOE in sizes from 0.1 micron to 500 micron.
- Drain connection for easier handling.
- Electropolished housing and simple handling via the clamp closure.
- Prepared for dual gauges (optional)
Paint filters
Paint filters LP 16

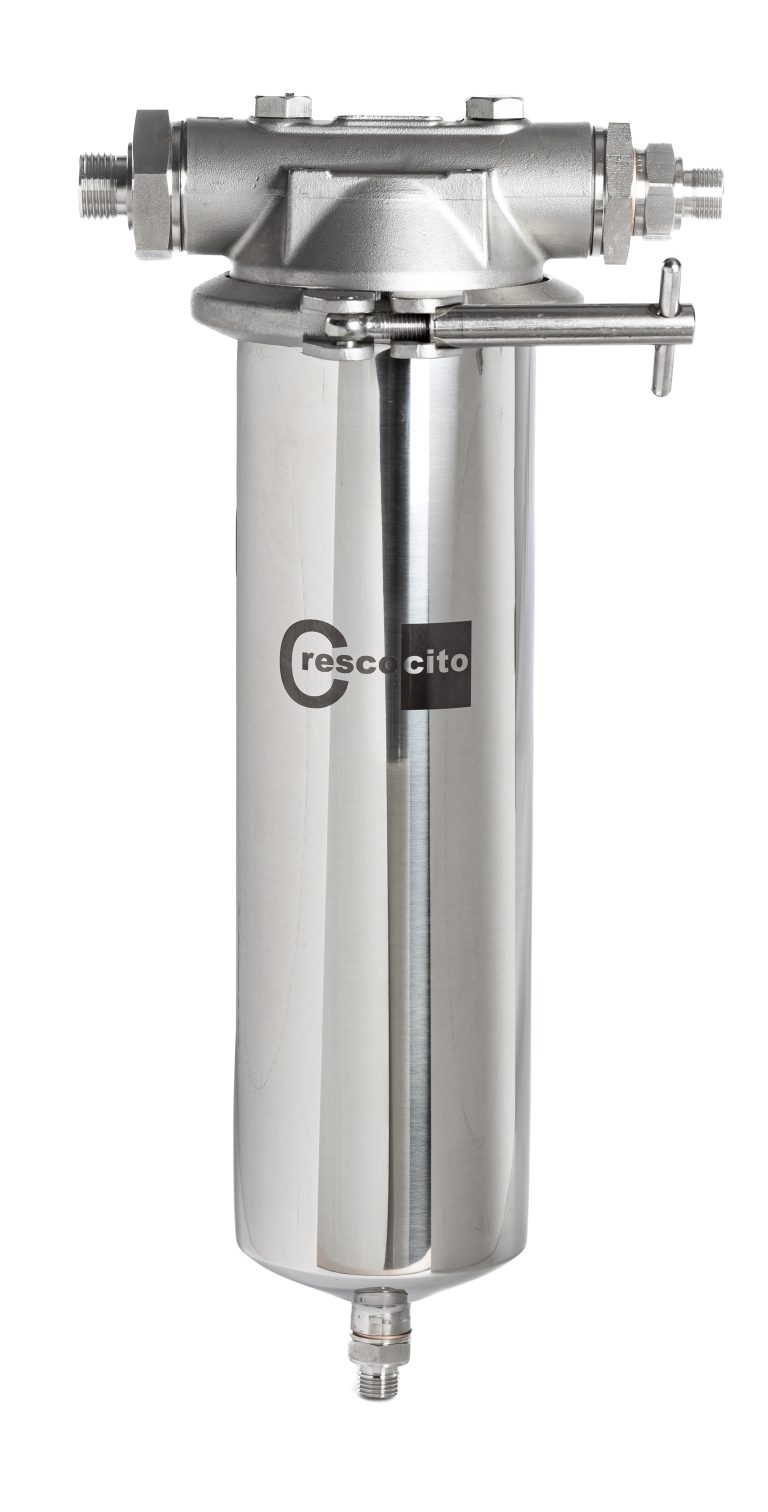

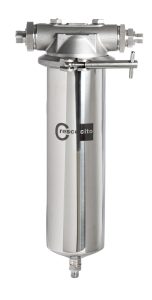

The Crescocito LP 16 is a cartridge filter housing designed for reliable filtration in low-pressure industrial paint and coating systems. Compatible with standard 10-inch SOE and DOE filter cartridges from 0.1 to 500 micron, the LP 16 provides flexible filtration for a wide range of coating materials and application requirements.
With an electropolished housing, easy clamp closure and integrated drain connection, the LP 16 is designed for efficient operation and easy maintenance. The filter handles pressures up to 16 bar and can also be prepared for optional dual pressure gauges, making it a practical solution for controlled paint filtration in demanding industrial coating processes.
| Max pressure | 16 bar |
|---|---|
| Inlet / outlet (BSP) | 3/4" – 3/4" |
| Cartridge | 0,1 – 500 micron |
| Part number | 243037385 |
-
What is the LP 16?
The LP 16 is a cartridge filter housing designed for filtration of paint and coating materials in low-pressure industrial applications.
-
What is the LP 16 used for?
The LP 16 is used to filter coating material before it reaches downstream paint application equipment, helping remove unwanted particles from the paint supply.
-
Why is paint filtration important in industrial painting?
Effective filtration helps prevent particles and contaminants from reaching spray equipment. This supports reliable operation, consistent material flow and stable coating performance.
-
Which filter cartridges can be used with the LP 16?
The LP 16 is designed for standard 10-inch SOE and DOE cartridges, providing flexibility when selecting filtration for different coating applications
-
What filtration sizes are available?
The LP 16 supports cartridges ranging from 0.1 micron up to 500 micron. This wide range allows the filtration level to be selected according to the coating material and application requirements.
-
What is the difference between SOE and DOE filter cartridges?
SOE means Single Open End, while DOE means Double Open End. The LP 16 housing is designed to accommodate standard 10-inch cartridges of both types.
-
What is the maximum operating pressure of the LP 16?
The maximum pressure is 16 bar, making the LP 16 suitable for low-pressure industrial paint supply applications.
-
Does the LP 16 have a drain connection?
Yes. The LP 16 includes a drain connection for easier handling, which can simplify servicing and maintenance of the filter housing.
-
Is the LP 16 easy to open for filter replacement?
Yes. The filter housing uses a clamp closure, providing straightforward access when inspecting or replacing the cartridge.
-
What is the advantage of the electropolished housing?
An electropolished surface provides a smooth finish that supports clean handling and easier maintenance in industrial paint filtration applications.
-

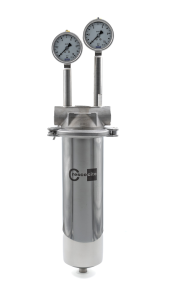

Can the LP 16 be equipped with pressure gauges?
Yes. Crescocito specifies that the LP 16 can be prepared for optional dual gauges.
-
What are the main advantages of the LP 16?
The main advantages are its 0.1–500 micron filtration range, compatibility with standard 10″ SOE and DOE cartridges, 16 bar pressure capability, drain connection, electropolished housing, clamp closure and optional dual gauges.
