- RPC – Remote Paint Control
- Solid model with high performance and high capacity
- Wide range of fluid nozzles and air caps
- Integrated fan width control
- Suitable for medium to high flow rates
- SS fluid section
- Very clean interior design for efficient flushing
- Push in fittings for air connections
- General industry
- Wood market
- Leather coating
- Epoxi and PU coatings
- Abrasive coatings
Spray guns

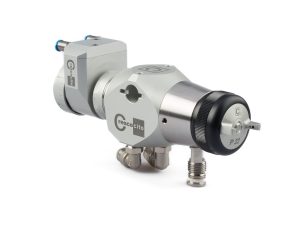

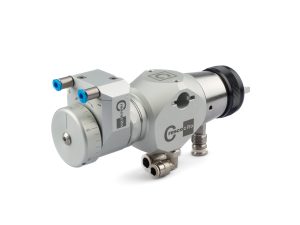

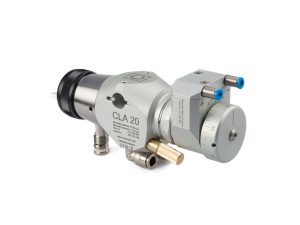

Automatic spray guns - Low Pressure CLA 20 RPC
RPC – Remote Paint Control
Unique option with remote paint control even during operation. Paint flow can be increased or decreased by 30 indexed positions/turn for very fine flow control. Indexed changes either by hand, manual pneumatic pulse or from a machine-controlled PLC.
Can be combined with all models of the CLA 20 and CLA 30.
| Fluid Section | Stainless steel |
|---|---|
| Gun body | Aluminium with hardening |
| Flow control | Remote control 30 klicks |
| Paint needle | Stainless steel, Tungsten Carbide |
| Paint nozzle | Hardened steel, Stainless steel, Tungsten Carbide |
| Air cap | Hardened and treated aluminium |
| Nozzle size | 0,5 – 2,7mm |
| Weight | 1020 grams |
| Part number | 211020000 |
| Approvals | Atex, CE |
Gun adapters and mounting plates for robots and fixed installations, Positioning pin for programming works.
-
What is the CLA 20 RPC?
The CLA 20 RPC is an automatic low-pressure spray gun designed for industrial painting applications where precise and remotely controlled paint flow is required. It combines the performance of the CLA 20 platform with RPC – Remote Paint Control for improved process control in automated painting installations.
-
What does RPC mean?
RPC stands for Remote Paint Control. It allows the paint flow to be controlled remotely, making it possible to adjust the application process without manually adjusting the spray gun.
-
What applications is the CLA 20 RPC designed for?
The CLA 20 RPC is designed for automatic industrial painting applications where accurate paint flow, repeatability and process control are important. It is particularly suitable for automated production lines and applications with varying coating requirements.
-
What are the advantages of Remote Paint Control?
Remote Paint Control provides greater flexibility when adjusting the paint application. Paint flow can be adapted to different products, geometries or production requirements, helping to achieve consistent coating quality while reducing unnecessary paint consumption.
-
Can the CLA 20 RPC help reduce paint consumption?
Yes. Precise control of the paint flow makes it easier to apply the correct amount of coating for each application. This can help reduce overspray, minimise paint waste and improve overall transfer efficiency.
-
Is the CLA 20 RPC suitable for automated painting systems?
Yes. The CLA 20 RPC is developed for automated industrial painting installations and can be integrated into fixed and robotised painting systems where remote process control is required.
-
What types of coating materials can be used with the CLA 20 RPC?
The CLA 20 platform is suitable for a wide range of industrial coating materials, including water-based, solvent-based and UV materials. The correct nozzle, needle and setup should always be selected according to the coating material and application.
-
What nozzle sizes are available?
The CLA 20 platform offers a wide range of fluid nozzles and air caps, with nozzle sizes from 0.5 mm to 2.7 mm. This makes it possible to configure the spray gun for different materials, flow rates and coating requirements.
-
Is the CLA 20 RPC suitable for medium and high paint flow rates?
Yes. The CLA 20 platform is designed for medium to high flow rates, making it suitable for industrial applications requiring both high production capacity and good finish quality.
-
How does the CLA 20 RPC improve process repeatability?
Remote control of the paint flow makes it possible to use predefined application settings for different products or processes. This helps maintain repeatable paint flow and consistent coating results throughout production.
-
Where is the CLA 20 RPC typically used?
The CLA 20 RPC is suitable for a wide range of general industrial coating applications, particularly where automated paint application, precise flow control and high process repeatability are required.
